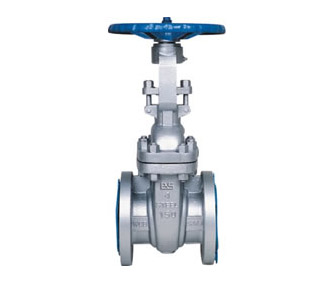

    鋼制楔式閘閥

    發布時間:2016-12-31 關注次數:
      鋼制楔式閘閥

    Z41H、Z41Y 型 150(Lb)~600(Lb) 鋼制楔式閘閥:手動、法蘭連接、明桿楔式剛性單閘板,閥座密封面材料為硬質合金,壓力級 150(Lb)~600(Lb),閥體材料為碳素鋼(Z41Y-150(Lb)~600(Lb) )、鉻鉬鋼(Z41Y-300(Lb)I Z41Y-400(Lb)I)、不銹鋼(Z41Y-150(Lb)P~600(Lb)P Z41Y-150(Lb)R~600(Lb)R Z41H-600(Lb)P Z41H-600(Lb)R)的美標閘閥。

    Z41H、Z41Y 型 150(Lb)~600(Lb) 鋼制楔式閘閥主要性能參數
    型號壓力級(Lb)適用溫度/℃適用介質
    Z41Y-150(Lb)150≤425水、蒸汽、油品
    Z41Y-150(Lb)P150≤200腐蝕性介質
    Z41Y-150(Lb)R
    Z41Y-300(Lb)300≤425水、蒸汽、油品
    Z41Y-300(Lb)P300≤200腐蝕性介質
    Z41Y-300(Lb)R
    Z41Y-400(Lb)400≤425水、蒸汽、油品
    Z41Y-600(Lb)600
    Z41H-150(Lb)150≤425水、蒸汽、油品
    Z41H-300(Lb)300
    Z41H-400(Lb)400
    Z41Y-300(Lb)I300≤550水、蒸汽、油品
    Z41Y-400(Lb)I400≤450非腐蝕性介質
    Z4Y-400(Lb)P400≤150弱腐蝕性介質
    Z41Y-400(Lb)R≤200腐蝕性介質
    Z41H-600(Lb)600≤200非腐蝕性介質
    Z41H-600(Lb)I≤350
    Z41H-600(Lb)P≤200腐蝕性介質
    Z41Y-600(Lb)R600≤150腐蝕性介質

    產品零部件材料

    Z41H、Z41Y 型 150(Lb)~600(Lb) 鋼制楔式閘閥零部件材料
    型號材料
    閥體、閥蓋、閘板閥桿密封面填料
    Z41Y-150(Lb)碳素鋼鉻不銹鋼堆焊硬質合金石棉石墨或柔性石墨
    Z41Y-150(Lb)P鉻鎳鈦鋼鉻鎳鈦鋼
    Z41Y-150(Lb)R鉻鎳鉬鈦鋼鉻鎳鉬鈦鋼
    Z41Y-300(Lb)碳素鋼鉻不銹鋼堆焊硬質合金石棉石墨或柔性石墨
    Z41Y-300(Lb)P鉻鎳鈦鋼鉻鎳鈦鋼
    Z41Y-300(Lb)R鉻鎳鉬鈦鋼鉻鎳鉬鈦鋼
    Z41Y-400(Lb)碳素鋼鉻不銹鋼堆焊硬質合金石棉石墨或柔性石墨
    Z41Y-600(Lb)
    Z41H-150(Lb)碳素鋼鉻不銹鋼鉻不銹鋼石棉石墨或柔性石墨
    Z41H-300(Lb)
    Z41H-400(Lb)
    Z41Y-300(Lb)I鉻鉬鋼鉻不銹鋼堆焊硬質合金石棉石墨或柔性石墨
    Z41Y-400(Lb)I鉻鉬鋼鉻鉬鋼+鈷鉻鎢
    Z4Y-400(Lb)P鉻鎳鈦不銹鋼鉻鎳鈦不銹鋼堆焊硬質合金石棉三圍或柔性石墨
    Z41Y-400(Lb)R鉻鎳鉬鈦鉻鎳鉬鈦鋼+鈷鉻鎢
    Z41H-600(Lb)碳鋼鉻鋼
    Z41H-600(Lb)I
    Z41H-600(Lb)P鉻鎳鈦鋼鉻鉬釩鋼
    Z41Y-600(Lb)R鉻鎳鉬鈦不銹鋼鉻鎳鉬鈦不銹鋼堆焊硬質合金石棉石墨或柔性石墨

    產品外形及結構尺寸

    Z41H、Z41Y 型 150(Lb) 鋼制楔式閘閥主要外形及結構尺寸
    DNDN/inLDD1D2bz×ΦdH≈D0≈重量/kg
    502178152120.5120.5164×Φ1932320023
    6521/2190178139.5139.5184×Φ1934725032
    803203190152.5152.5194×Φ1938325040
    1004229229190.5190.5248×Φ1945730063
    1255254254216216248×Φ2263230066
    1506267279241.5241.5268×Φ22635350108
    2008292343298.5298.5298×Φ22762350181
    250103304063623623112×Φ25895400263
    300123564834324323212×Φ251080500346
    350143815334764763512×Φ291295600488
    400164065795405403716×Φ291435600621
    450184326355785784016×Φ321626650814
    500204576986356354320×Φ321829650992
    60024508813749.5749.54820×Φ3521757001492
    75030610984914.59147528×Φ3526927002272

    Z41H、Z41Y 型 300(Lb) 鋼制楔式閘閥主要外形及結構尺寸
    DNDN/inLDD1D2bz×ΦdH≈D0≈重量/kg
    50221616512792164×Φ1932320023
    6521/2241190149105184×Φ1934725032
    803283210168.5127194×Φ1938325040
    1004305254200157248×Φ1945730063
    1255381279235186248×Φ2263230066
    1506403318270216268×Φ22635350108
    2008419381330270298×Φ22762350171
    25010457444387.53243112×Φ25895400263
    300125025214513813212×Φ251080500346
    35014762584514.54133512×Φ291295600488
    40016838648571.54703716×Φ291435600621
    45018914711628.55334016×Φ321626650814
    500209917756865844320×Φ321829650992
    6002411439148136924820×Φ3521757001492

    Z41H、Z41Y 型 400(Lb) 鋼制楔式閘閥主要外形及結構尺寸
    DNDN/inLDD1D2bz×ΦdH≈D0≈重量/kg
    50229246512792258×Φ1936825035
    652?330190149.4105298×Φ2239430047
    803356210168.1127328×Φ22473300365
    1004406254200.2157358×Φ256225090
    1255457279235186368×Φ25686400153
    1506495318269.72164112×Φ25750400260
    2008597381330.22704812×Φ29876500390
    25010673444387.43245416×Φ321041600535
    30012762521450.83815716×Φ351181650886
    35014826584514.44136020×Φ351588700960
    40016902648571.54706420×Φ3818037001424

    Z41H、Z41Y 型 600(Lb) 鋼制楔式閘閥主要外形及結構尺寸
    DNDN/inLDD1D2bz×ΦdH≈D0≈重量/kg
    50229216512792338×Φ1951025444
    652?330190149100368×Φ2255425460
    803356210168127398×Φ2259530580
    1004432273216157458×Φ25712356145
    1255508330266.5186528×Φ29826406236
    15065593562922165512×Φ29995508309
    20086604193492706312×Φ321157610522
    250107875084323247116×Φ351373686779
    300128385594893817420×Φ3516036861108
    350148896035274137720×Φ3819307621506
    400169916866034708420×Φ4120328891939
